Wheelchair Assistive Device

Lead Engineer for an assistive device project designing a ratchet mechanism to reduce upper body strain and improve wheelchair propulsion efficiency. Directed mechanical design, prototyping, and testing for reliable real-world use.

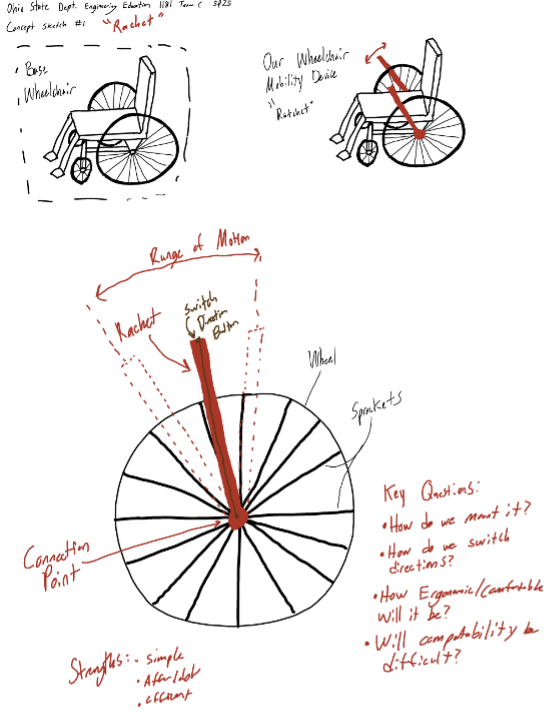

Wheelchair Image 1

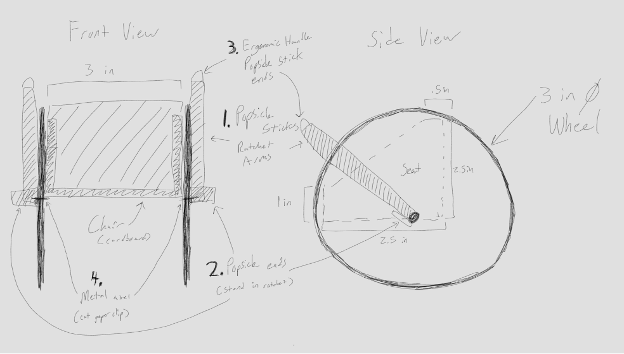

Wheelchair Image 2

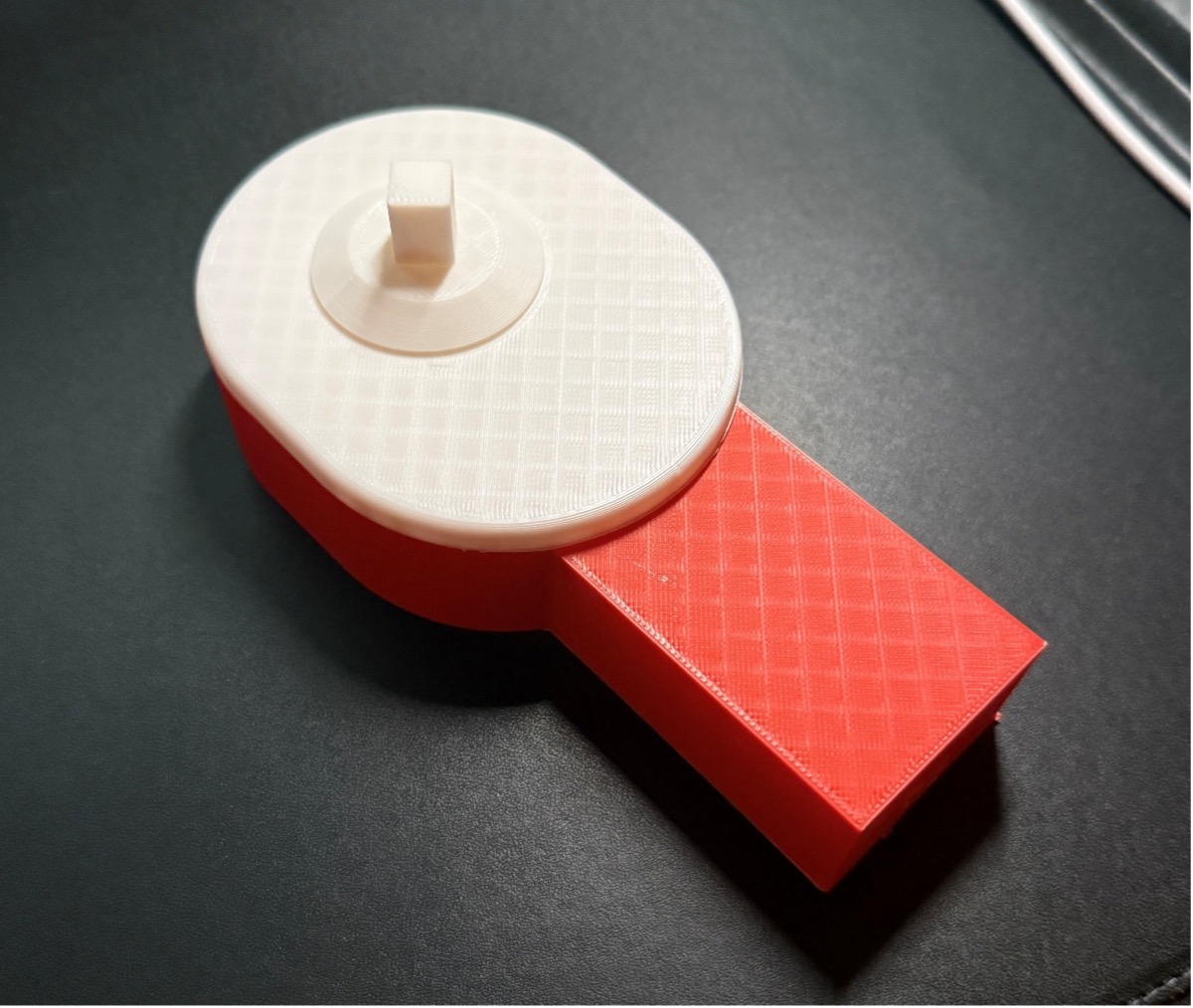

Wheelchair Image 3

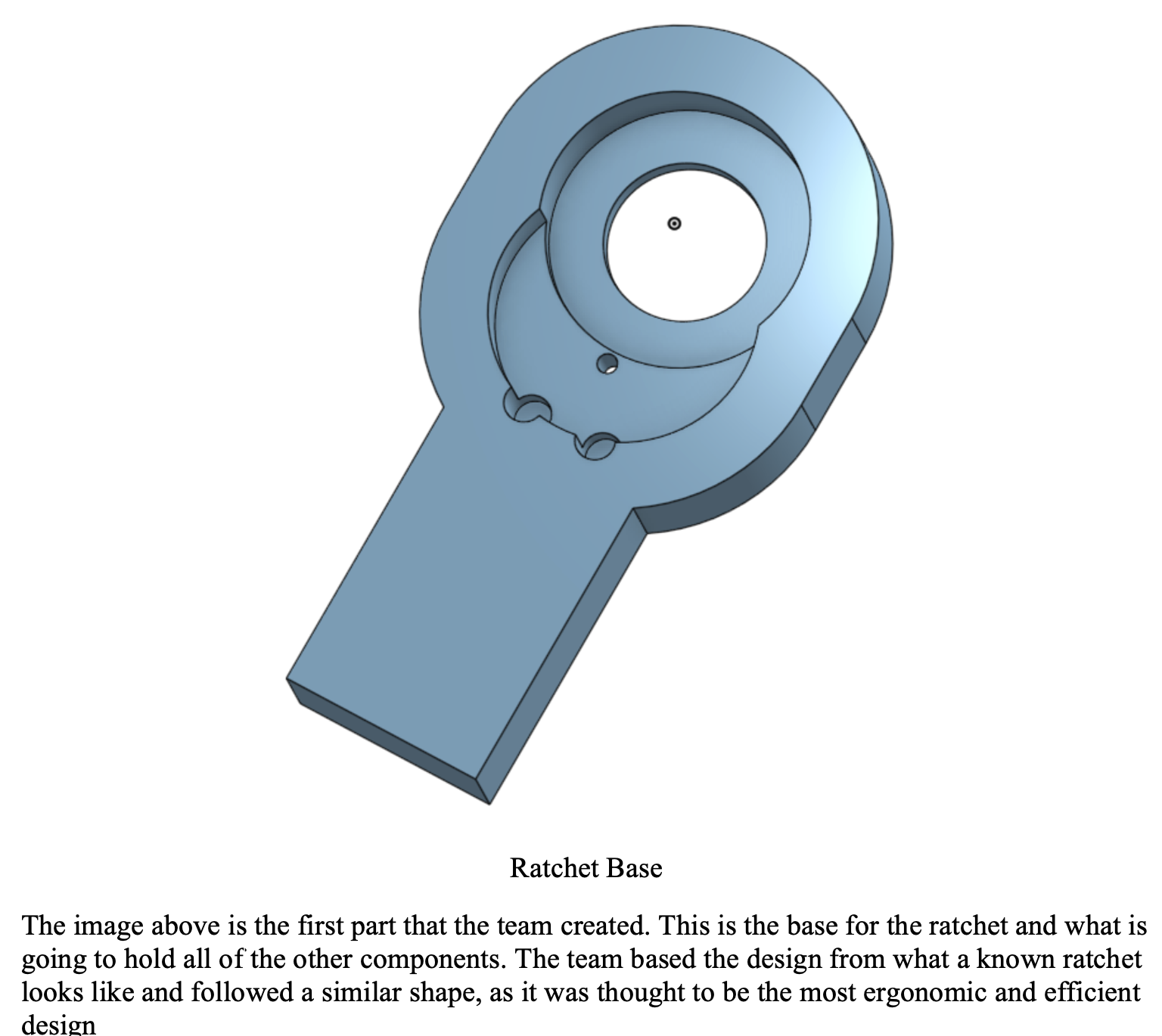

Wheelchair Image 4

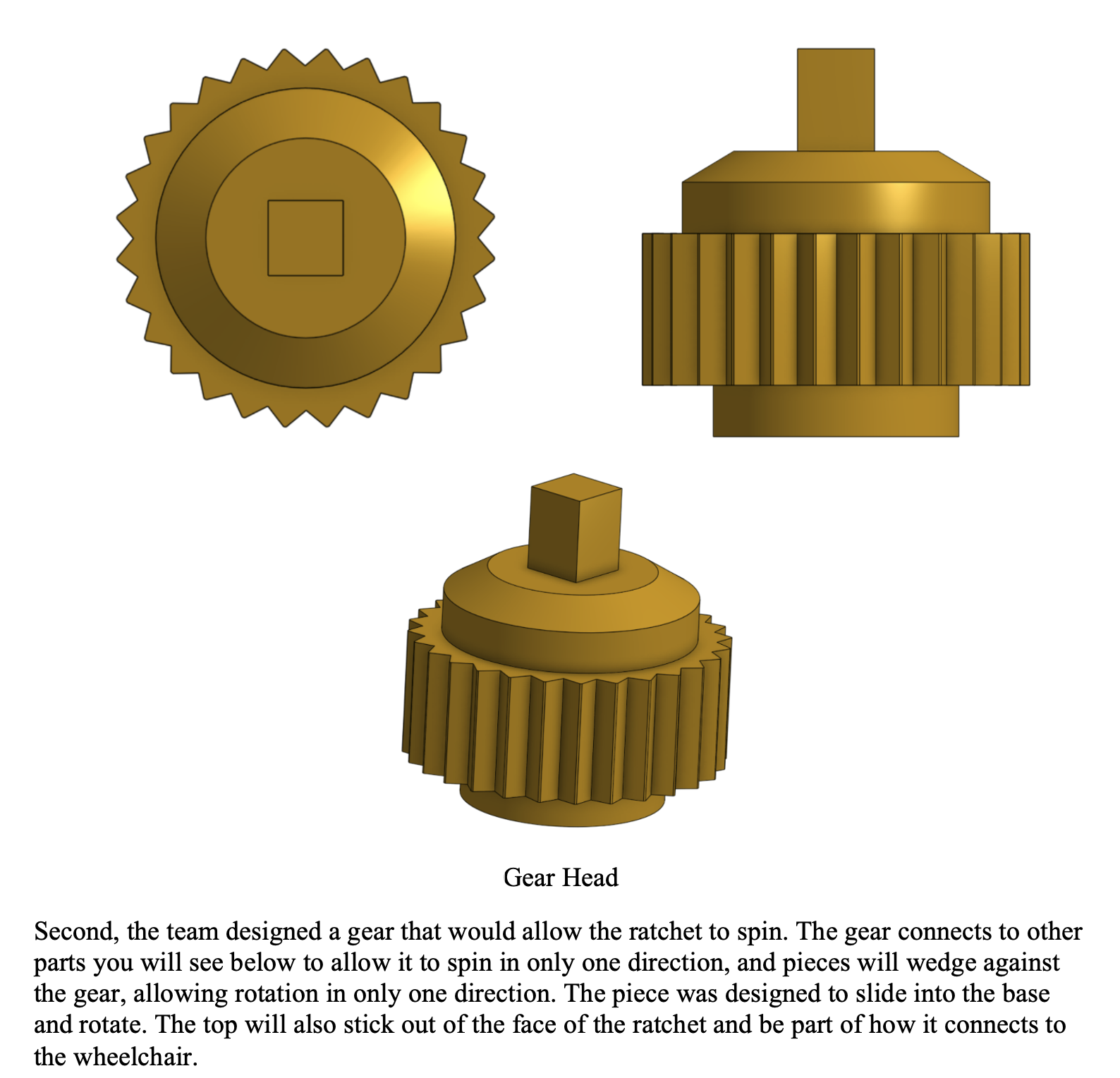

Wheelchair Image 5

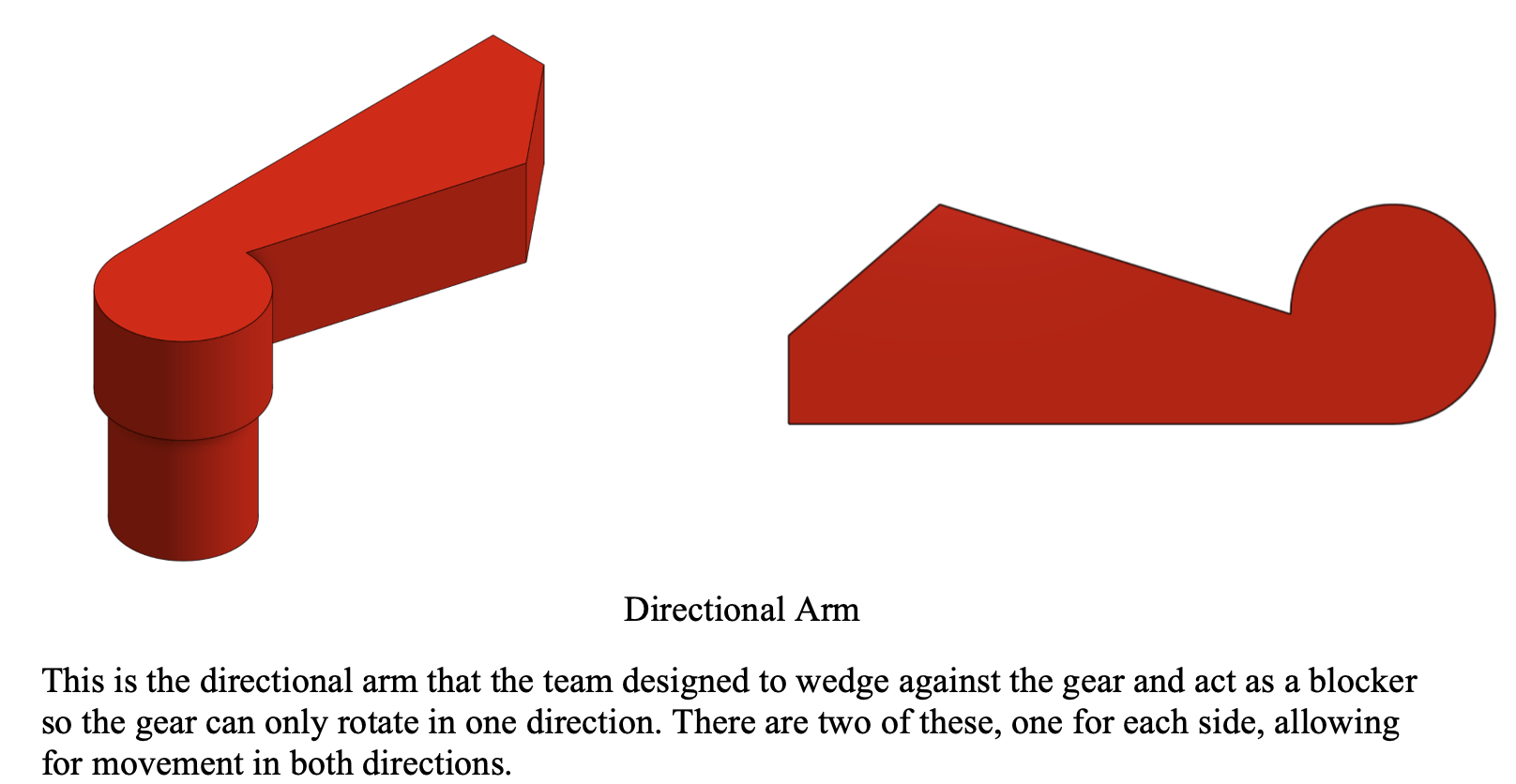

Wheelchair Image 6

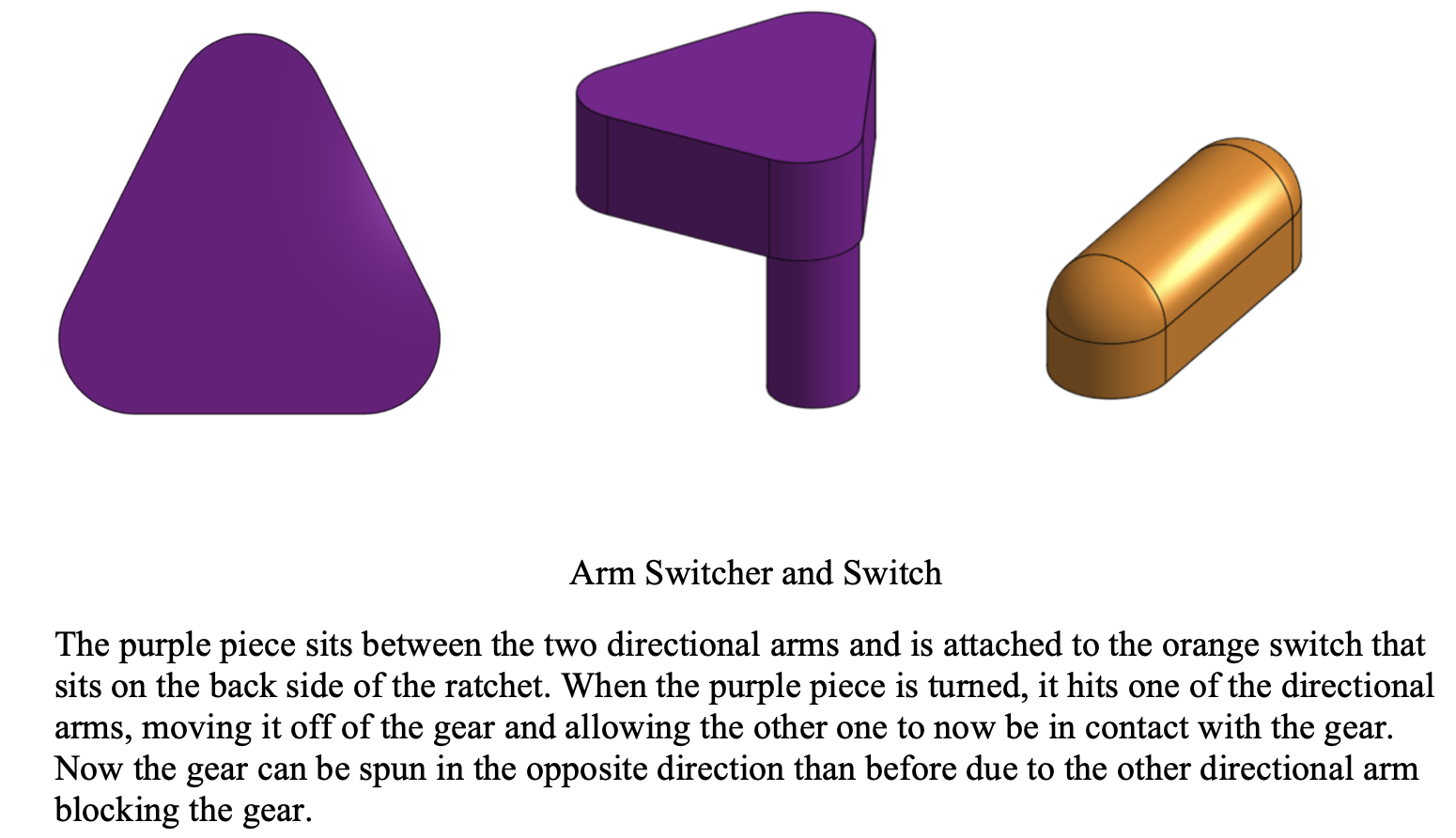

Wheelchair Image 7

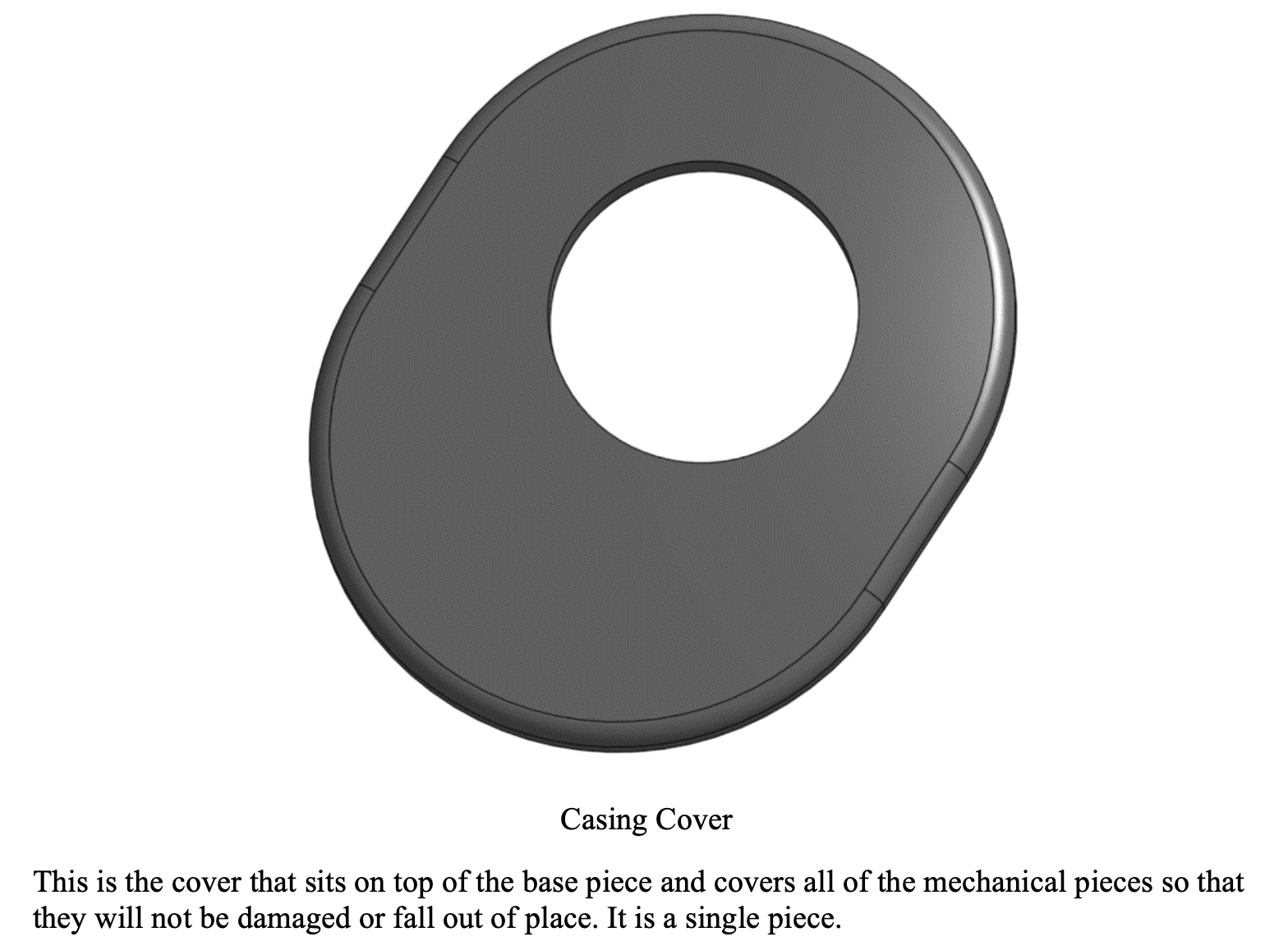

Wheelchair Image 8

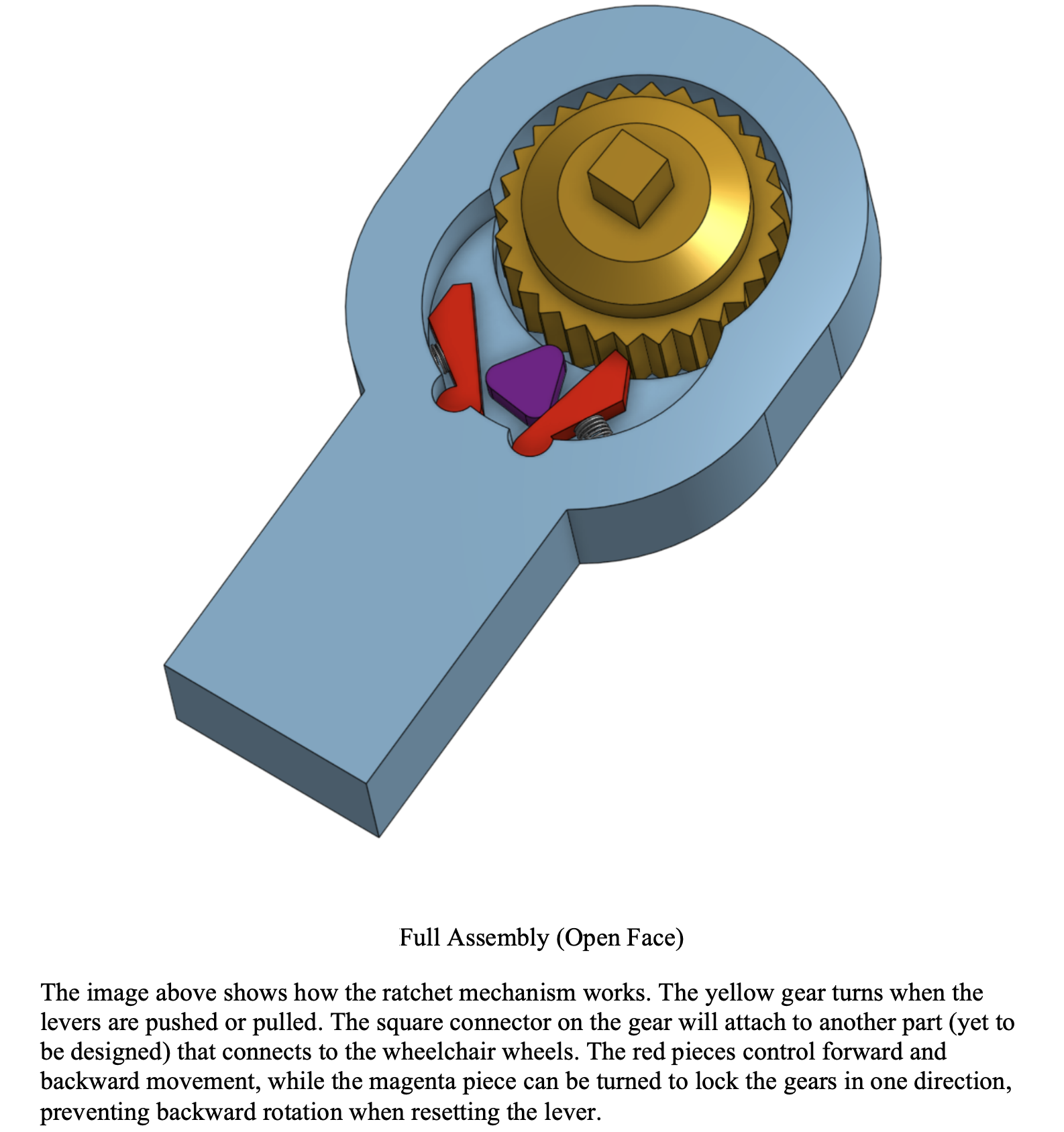

Wheelchair Image 9

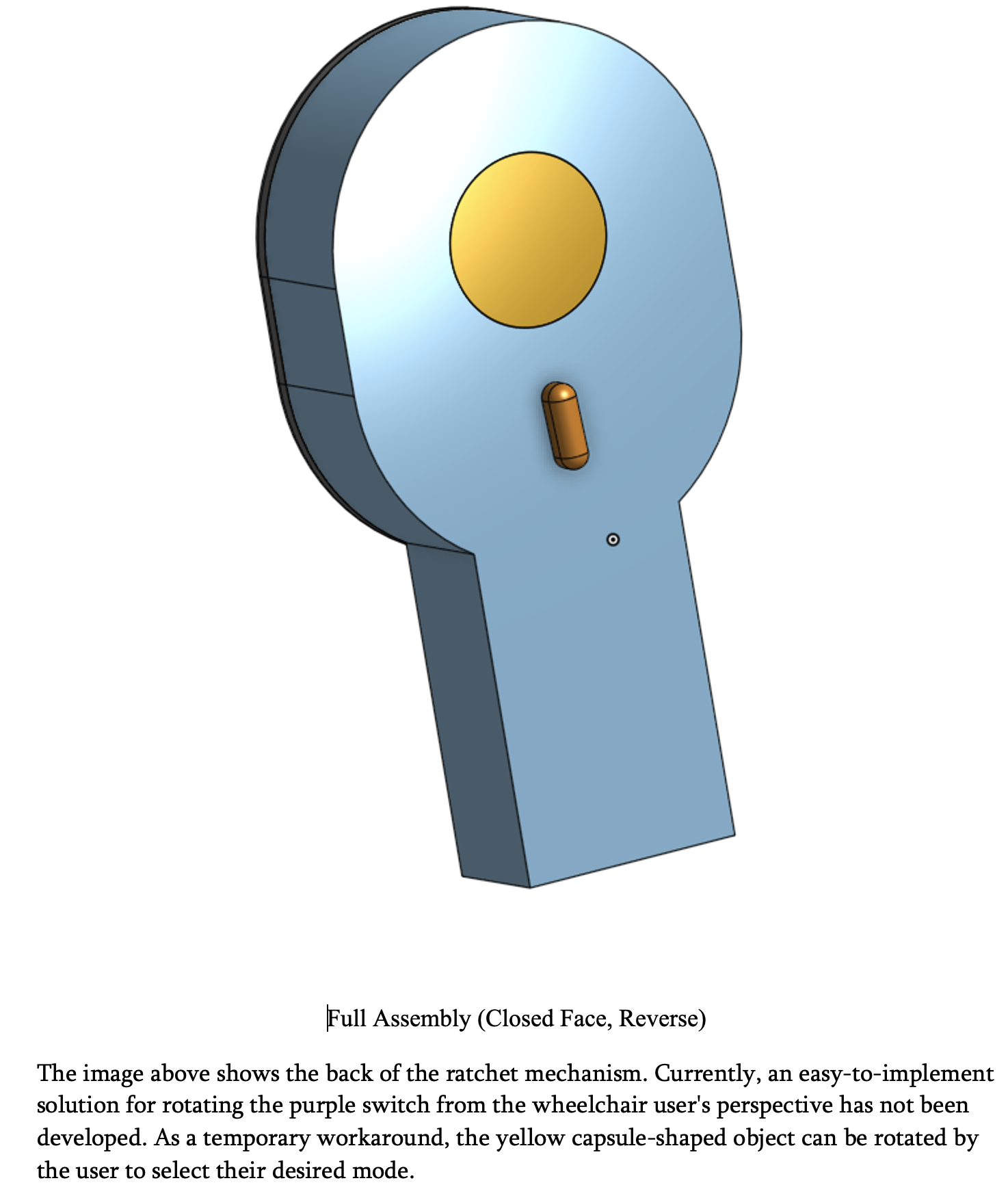

Wheelchair Image 10

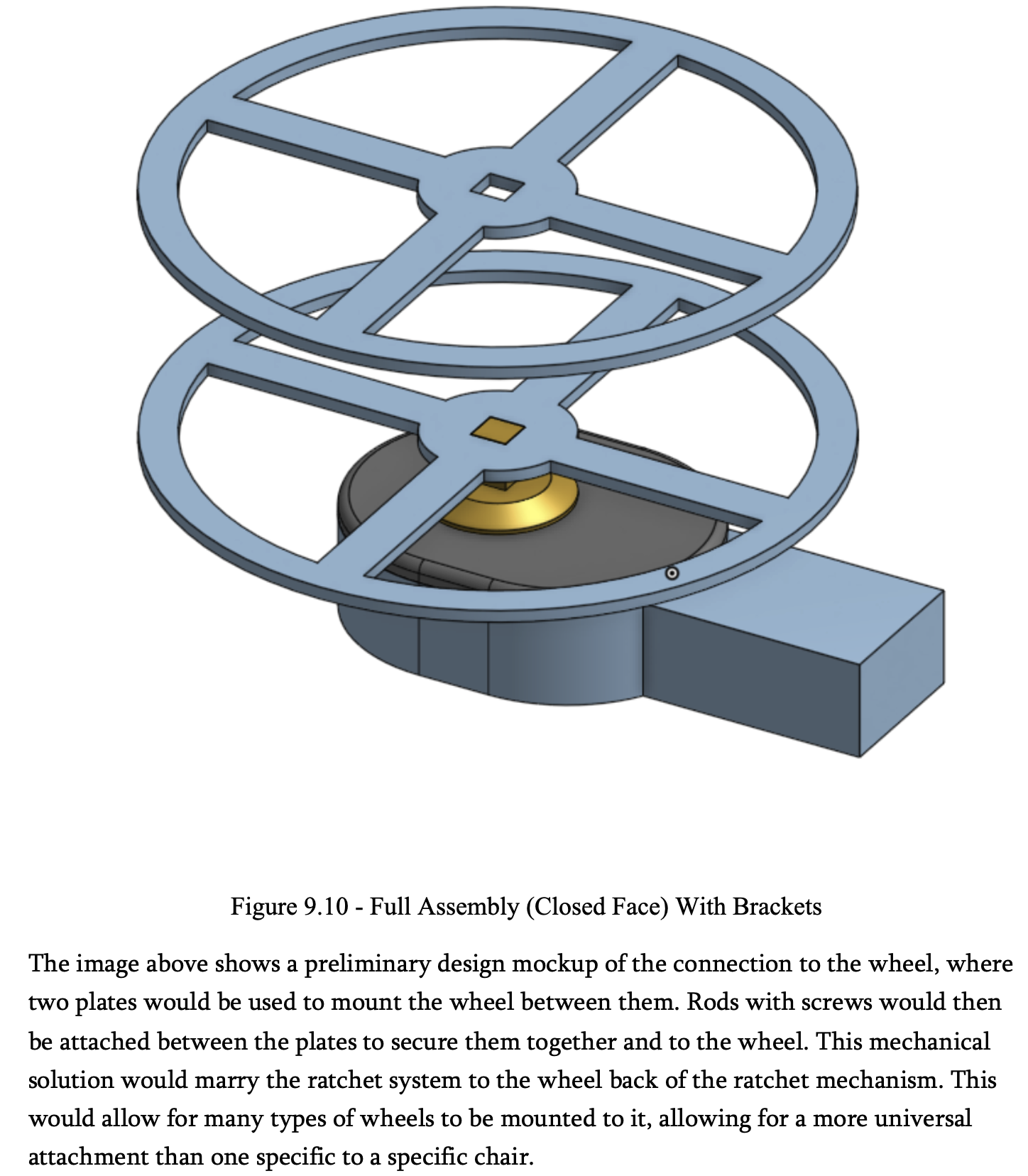

Wheelchair Image 11

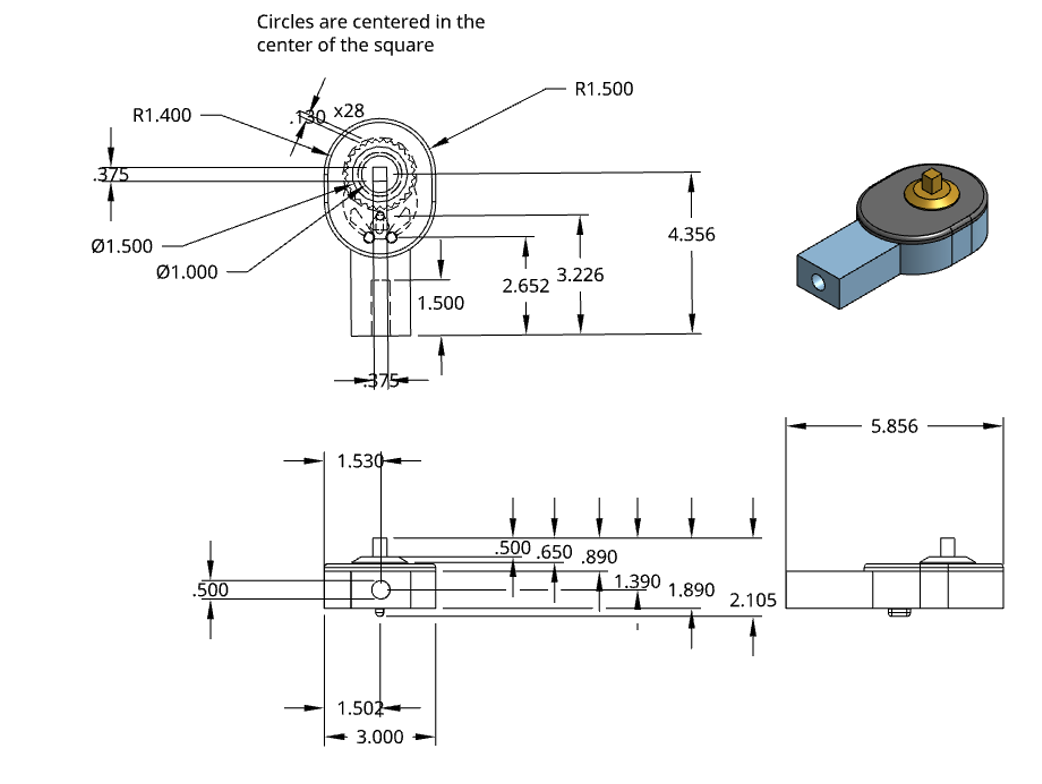

Wheelchair Image 12

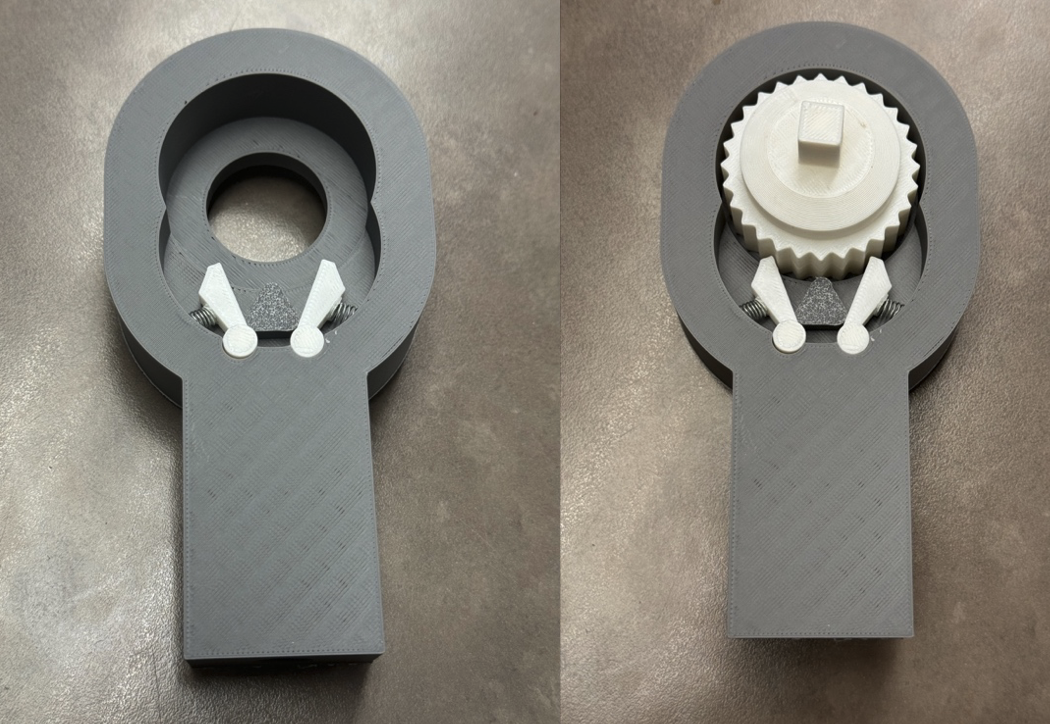

Wheelchair Image 13

Wheelchair Image 14

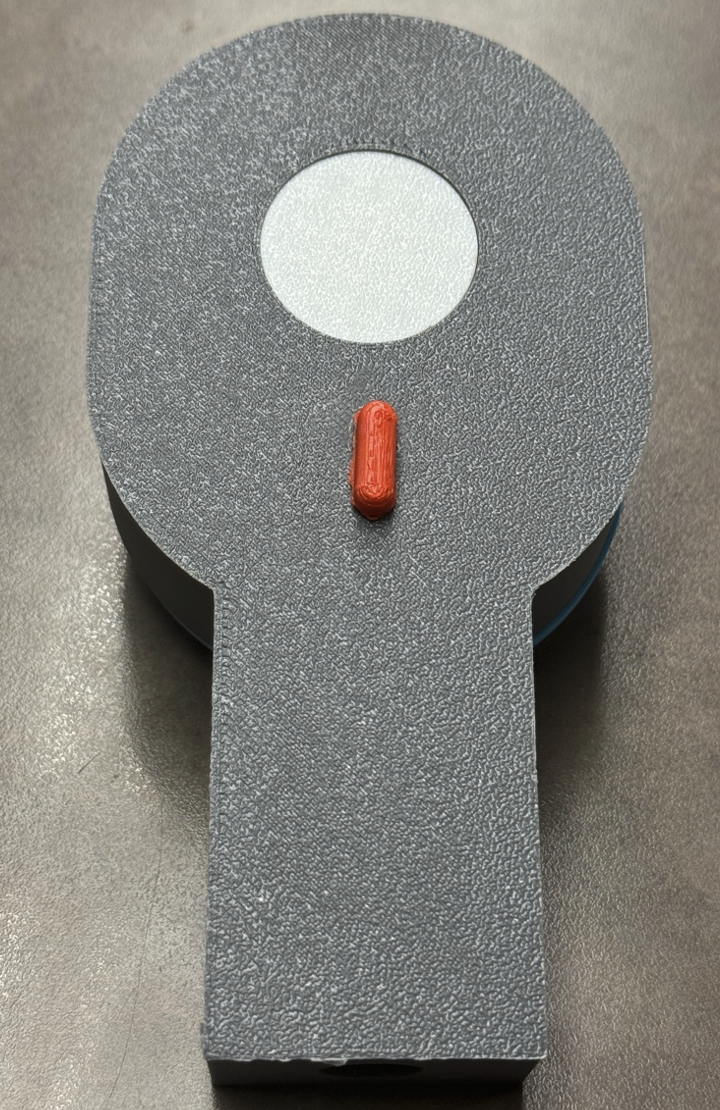

Wheelchair Image 15

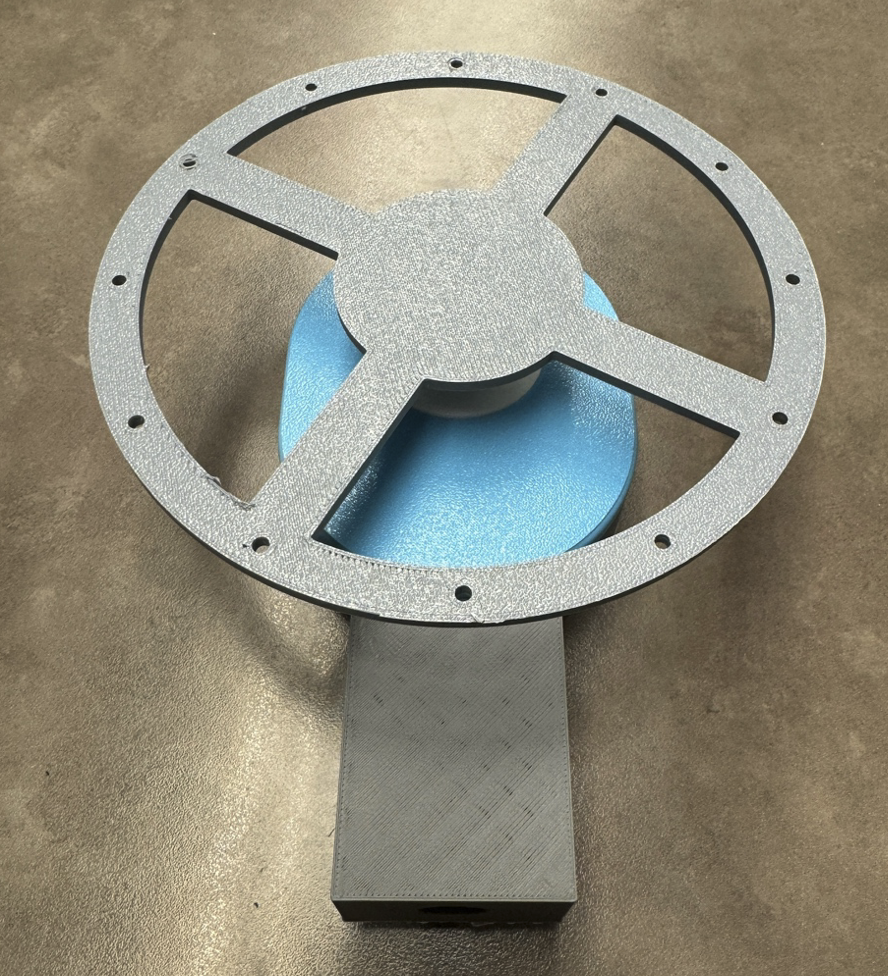

Wheelchair Image 16

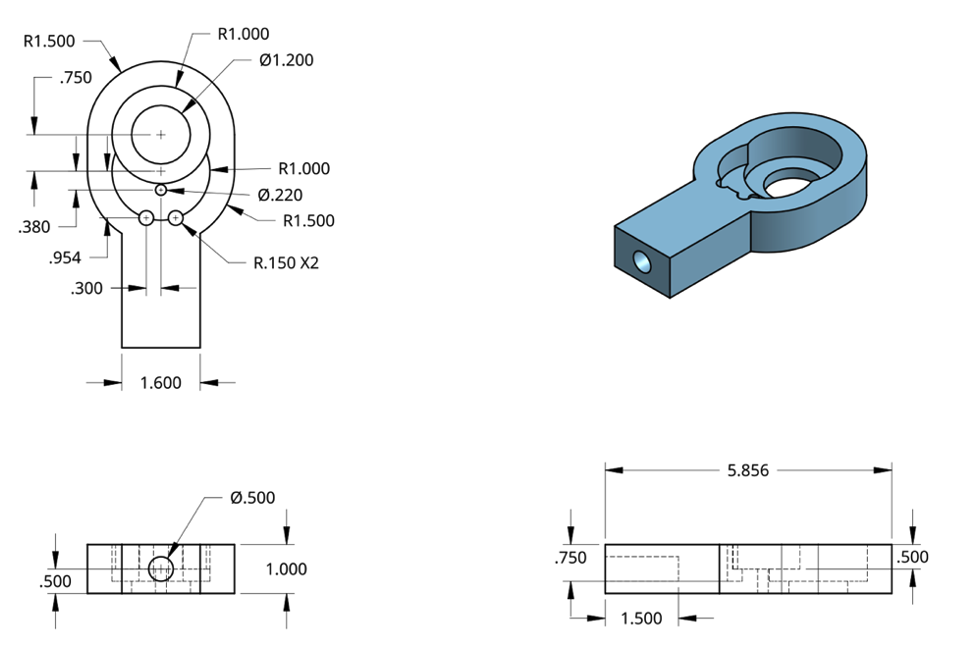

Wheelchair Image 17

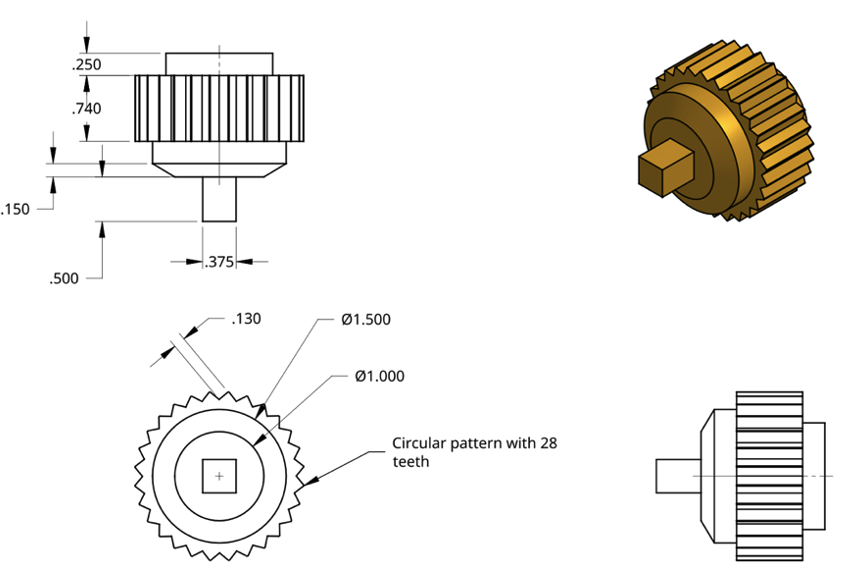

Wheelchair Image 18

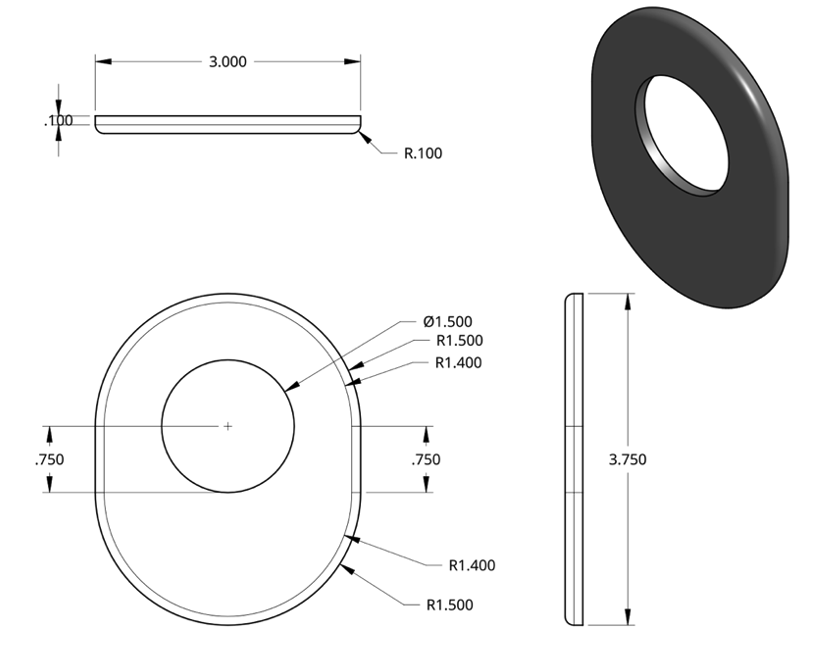

Wheelchair Image 19

Wheelchair Image 20

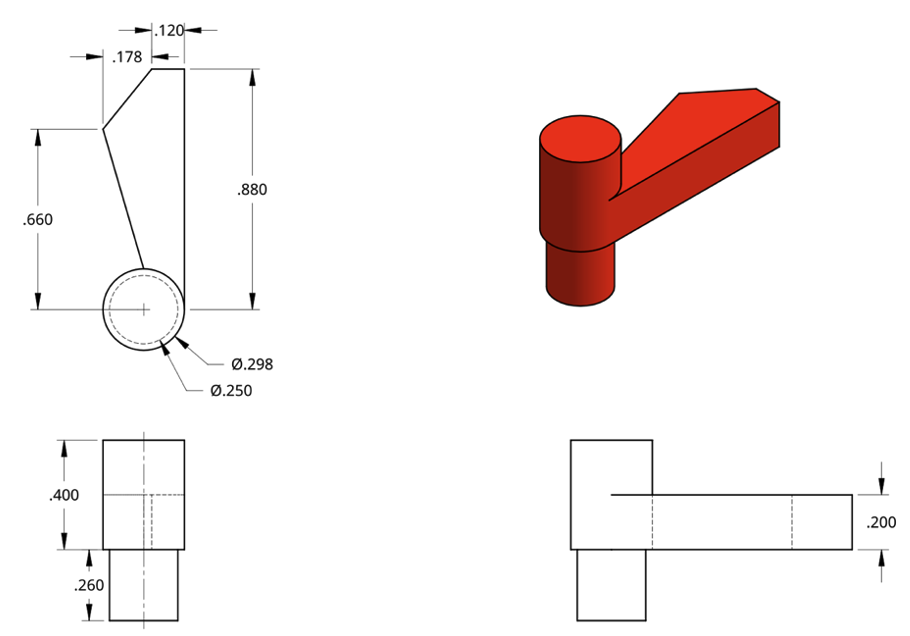

Wheelchair Image 21

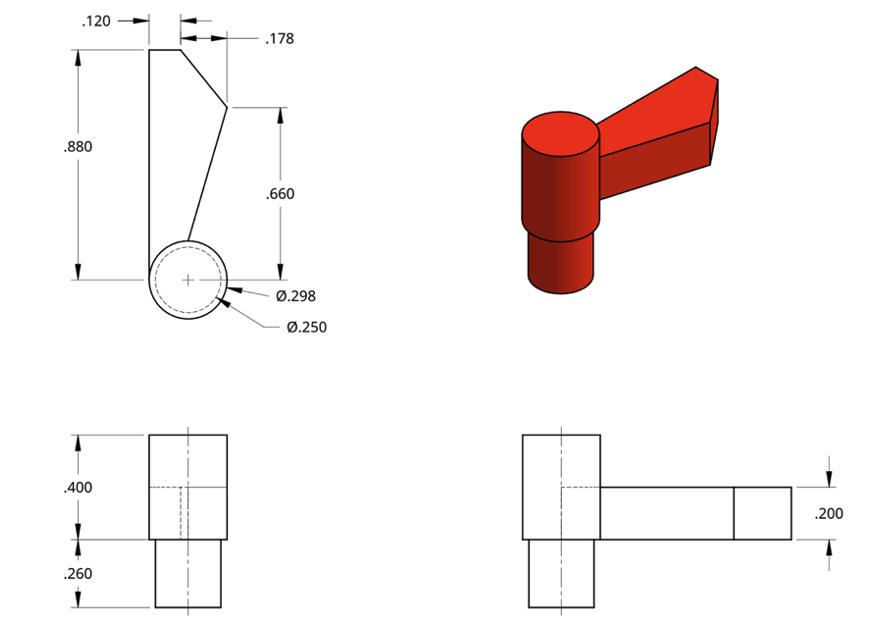

Wheelchair Image 22

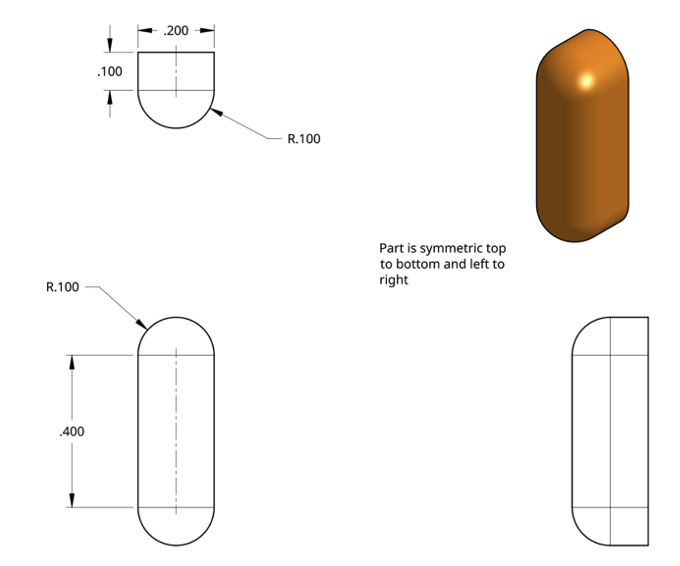

Wheelchair Image 23
